Manufacturing test

Chlorine Gas AnalyzerModel ATS- 208A Chlorine Gas Analyzer continuously monitors the concentration of Chlorine in PPM and other gases ranging from 100%V/V down to PPM level. Feature includes a duel wavelength sensor, Remote Sampling, Graphics LCD Display, adjustable level relay output for alarm and 4-20mA output for control purpose and minimal maintenance.Special gas sample Conditioning systems are used to clean and dry the gas sample for accurate and High performance operation. An Internal Pump draw gas sample into the sensor through a dust particle filter from an intake which can be located at distance up to 40 meter form the monitor.Specifications:Principle: Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic•Range: %V/V, % LEL, PPM, Mg/M3•Resolution: 0.1 Unit or 1 Unit (Application based)•Sampling Method: Auto Suction•Display: 320 X 264 Graphic LCD•Alarm; Relay Contact NO NC•Analog Out Put: 4-20mA•Digital Out Put : RS 232, RS 485 and Modbus Communication Protocol•Power Source:230VAC•Accuracy: /2%•Response Time: Sensor Life: 2-3 Years•Temperature:-15degree Celsius Humidity :< 85%RH Atmosphere Pressure: 86- 106Kpa•Dimension in mm: 430 (W) X 150(H) X 250(D)•Weight: 2.5 KG

Chlorine Gas Analayzer

Applied Techno Systems offering an extensive range of quality assured Biogas Analyzer for Fertilizer. It is manufactured at our advanced manufacturing unit under the guidance of our professionals using the optimum quality raw material and advanced technology. Our offered analyzer is highly acclaimed for its unique attributes, thus broadly demanded all across the market. We offer this analyzer in different sizes. Clients can avail this analyzer as per their need at industry leading prices.Features: Industrial approved design High operational fluency Easy to operate

Methane Gas Analyzer

INR 125500

Online Continuous Stack Emissions Monitoring SystemsApproved by TUVAs per latest CPCB guidelines, it is now mandatory to monitor online continuous Stack Emission Monitoring Systems (CSEMS) in 17 categories of highly polluting industries and in Common Hazardous waste and Biomedical waste incinerators for the parameters(industry/sector specific parameter) mentioned in the consent to operate/authorisation not later than by JUNE 30,2015. 1 Fertilizer PM, Fluoride2 Cement PM, NOx, SO23 Distillery PM4 Chlor Alkali Cl2, HCl5 Aluminum PM, Fluoride, Ammonia6 Iron & Steel PM, SO27 Oil & Refinery PM, CO, NOx, SO28 Petrochemical PM, CO, NOx, SO29 Power Plants PM, NOx, SO210 Zinc PM, SO211 Copper PM, SO2

Online Continuous Emission Monitoring

INR 475500

The Stack Monitoring System is used for measuring the total volumetric discharge of particulate matter and gaseous pollutants from the stacks. The kit is used for sampling the gaseous stream effluents that is essential to be measured and monitored for all industrial establishments. These effluents has to be controlled in compliance with Air Prevention and Control of Pollution Act of 1981.The kit is used for taking isokinetic samples of effluents that are emitted from various industrial processes including chemical and combustion process.The kit is designed to work and operate in horizontal as well as vertical position with its sampling probe and can be used in round or rectangular stacks and ducts with flow velocity ranging from 1 to 40 m/sec and temperatures up to 600C or higherFeatures•Easy to handle light-weight control unit is available in 4 boxes•Digital temperature reading monitor is provided to read the temperature of dry gas meter and stack gas•The kit features dry gas meter for total flow measurement•A thimble holder is provided for leak-proof collection of samples.•Six glass impingers are provided with the kit•Acrylic rotameters for flow measurements â€“ 100LPM for SPM and 10LPM for Gaseous•Light weight monoblock vacuum pump•Inclined Manometer with 0.01 inch WG resolution with spill proof arrangement•S - type pitot tube of 1.5-meter length individually calibrated as per EPA regulations (I.I.T.Mumbai)•S.S. Thermocouple of 1.5-meter length

Stack Monitoring Systems

INR 75500

Online Continuous Stack Emissions Monitoring SystemsApproved by TUVAs per latest CPCB guidelines, it is now mandatory to monitor online continuous Stack Emission Monitoring Systems (CSEMS) in 17 categories of highly polluting industries and in Common Hazardous waste and Biomedical waste incinerators for the parameters(industry/sector specific parameter) mentioned in the consent to operate/authorisation not later than by JUNE 30,2015. 1 Aluminium PM, Fluoride2 Cement PM, NOx, SO23 Distillery PM4 Chlor Alkali Cl2, HCl5 Fertilizers PM, Fluoride, Ammonia6 Iron & Steel PM, SO27 Oil & Refinery PM, CO, NOx, SO28 Petrochemical PM, CO, NOx, SO29 Power Plants PM, NOx, SO210 Zinc PM, SO211 Copper PM, SO2

Online Continuous Stack Emissions Moni

INR 450500

he Hydrogen Purity and Purge Gas analyzer have been design especially for cylindrical and power station to check the Hydrogen Purity. The Analyzer is supplied in robust and reliable construction having Li-IONE rechargeable battery with 6 Hour of continuous operation. The integral Pump, Needle valve and Flow meter are used to control the sample through the analyzer during the monitoring of alternator gases.Specifications:•Principle: Thermal Conductivity and NDIR (Non dispersive Infrared )•Range:Tri Gas Range 0-100% CO2 in Air , 0-100% H2 In CO2 and 90-100% H2 in Air %V/V•Resolution: 0.1 Unit or 1 Unit (Application based)•Sampling Method: Auto Suction or Direct Plug In•Display: 128 X 64 Graphics LCD•Alarm; Two Levels Low High, Visual and Audible•Power Source: Built in Lithium Rechargeable battery•Accuracy: /2%•Response Time: Data Storage: 5000 or 10000•Computer Interface: RS 232, USB, RS485•Sensor Life: 4-5 Years•Operating Time: 6 – 8 hours•Environmental:•Temperature:-15degree Celsius Humidity :< 85%RH Atmosphere Pressure: 86- 106Kpa•Housing: High Impact Plastic•Dimension in mm: 200 (W) X 120 (H) X 185(D)•Weight: 1.5 KG•Warranty: One Year

Tri Gas Analyser Model ATS 204A - Manu

Hydrogen Purity Analyser The Hydrogen Purity and Purge Gas analyzer have been design especially for cylindrical and power station to check the Hydrogen Purity. The Analyzer is supplied in robust and reliable construction having Li-IONE rechargeable battery with 6 Hour of continuous operation. The integral Pump, Needle valve and Flow meter are used to control the sample through the analyzer during the monitoring of alternator gases. Features: Simple Low Cost maintenance Microcontroller based embedded intelligent instruments H2 gas Range : 85-100%V/V Optional Tri Gas Range 0-100% CO2 in Air , 0-100% H2 In CO2 and 90-100%H2 in Air User friendly Interface Direct Plug In Or Auto Suction Sampling 128 x 64 Graphics LCD Display USB/RS 232 Computer Interface Long Life Rechargeable Li-IONE Battery Specification: Principle Thermal Conductivity and NDIR (Non dispersive Infrared ) Range %V/V Resolution 0.1 Unit or 1 Unit (Application based) Sampling Method Auto Suction or Direct Plug In Display 128 X 64 Graphics LCD Alarm Two Levels Low & High Visual and Audible Power Source Built in Lithium Rechargeable battery Accuracy /2% Response Time Data Storage 5000 or 10000 Computer Interface RS 232, USB, RS485 Sensor Life 4-5 Years Operating Time 6 8 hours Environmental Temperature 15degree Celsius Humidity Atmosphere Pressure 86- 106Kpa Housing High Impact Plastic Dimension in mm 200 (W) X 120 (H) X 185(D) Weight 1.5 KG Warranty One Year Application: Hydrogen Cooled Alternators & Turbine Hydrogen

Hydrogen Purity Analyser

Idealfor confined spaces, spot leak testing and mobile use, Applied Techno Systems portable gas detectors are marked by flexibility and quality. A variety of single or multi-gas detectors are offered in compact, lightweight designs— from simple alarm-only units to advanced, fully configurable and serviceable instruments.Applications include underground utilities vaults, boiler rooms, post-fire sites, sewers, industrial plants, industrial hygiene, first responder crews and remote fleets

Portable Gas Monitor

This service is rendered by our professionals keeping in mind precise requirements of clients. In order to render this service, our deft professionals use advanced techniques

Calibration Services

It helps to control the flow & pressure of different gases for different GC's. We professionals manufacture this box by making use of best quality raw material and contemporary technology in conformity with industry standards.

Gas Purification & Control Systems

This meter is precisely manufactured by our experts using high grade factor inputs in compliance with industry quality standards. The offered monitor is widely used in laboratory for measuring ph value

PH Meter For Laboratory

The offered analyzer is manufactured utilizing best quality components and the advanced technology. It helps to measure various gas pollutants in the exhaust for environmental reasons.

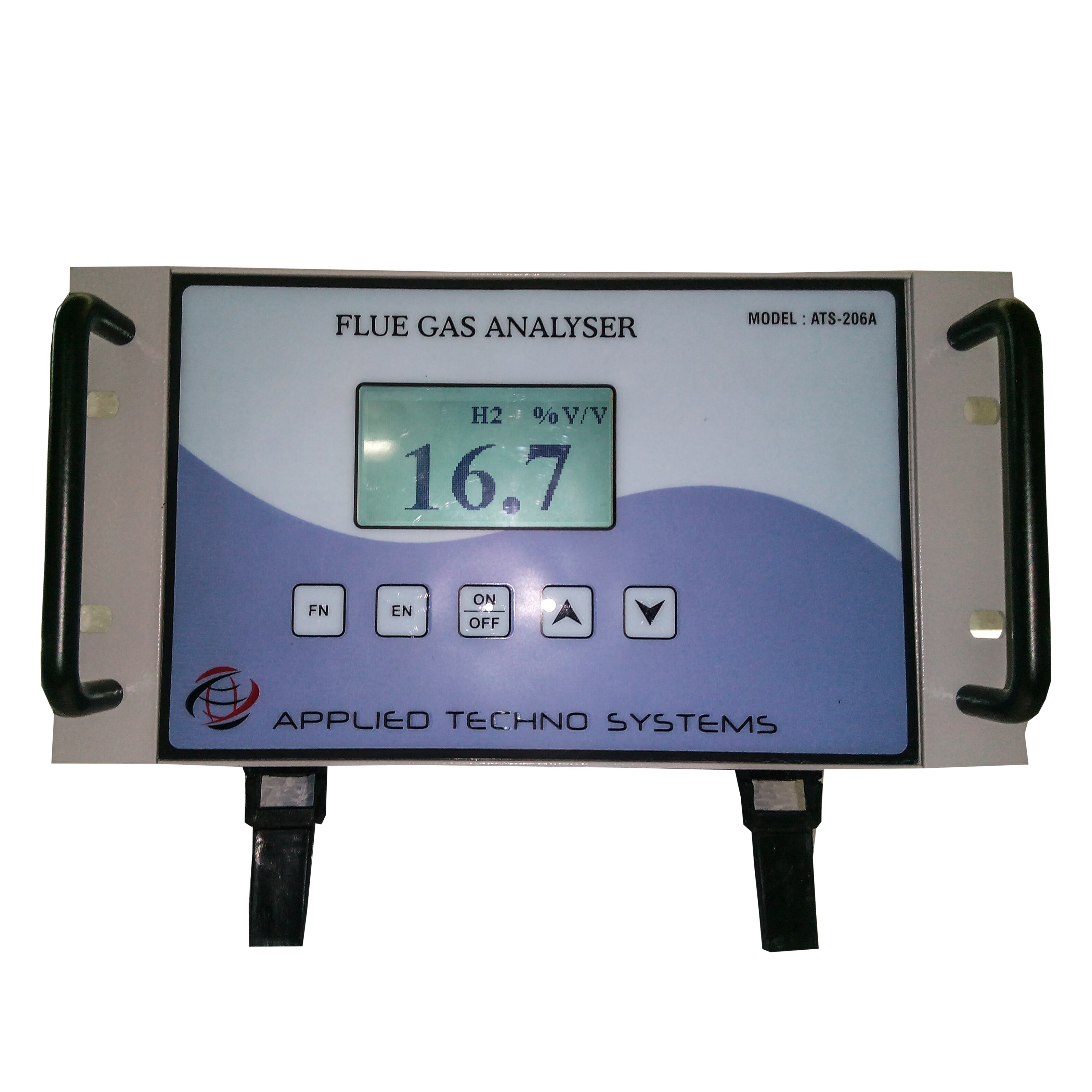

Flue Gas Analysers
