Description
Product details

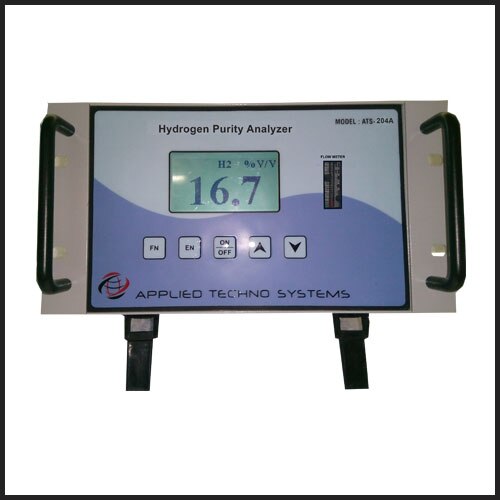

Hydrogen Purity Analyser The Hydrogen Purity and Purge Gas analyzer have been design especially for cylindrical and power station to check the Hydrogen Purity. The Analyzer is supplied in robust and reliable construction having Li-IONE rechargeable battery with 6 Hour of continuous operation. The integral Pump, Needle valve and Flow meter are used to control the sample through the analyzer during the monitoring of alternator gases. Features: Simple Low Cost maintenance Microcontroller based embedded intelligent instruments H2 gas Range : 85-100%V/V Optional Tri Gas Range 0-100% CO2 in Air , 0-100% H2 In CO2 and 90-100%H2 in Air User friendly Interface Direct Plug In Or Auto Suction Sampling 128 x 64 Graphics LCD Display USB/RS 232 Computer Interface Long Life Rechargeable Li-IONE Battery Specification: Principle Thermal Conductivity and NDIR (Non dispersive Infrared ) Range %V/V Resolution 0.1 Unit or 1 Unit (Application based) Sampling Method Auto Suction or Direct Plug In Display 128 X 64 Graphics LCD Alarm Two Levels Low & High Visual and Audible Power Source Built in Lithium Rechargeable battery Accuracy /2% Response Time Data Storage 5000 or 10000 Computer Interface RS 232, USB, RS485 Sensor Life 4-5 Years Operating Time 6 8 hours Environmental Temperature 15degree Celsius Humidity Atmosphere Pressure 86- 106Kpa Housing High Impact Plastic Dimension in mm 200 (W) X 120 (H) X 185(D) Weight 1.5 KG Warranty One Year Application: Hydrogen Cooled Alternators & Turbine Hydrogen
