Description
Product details

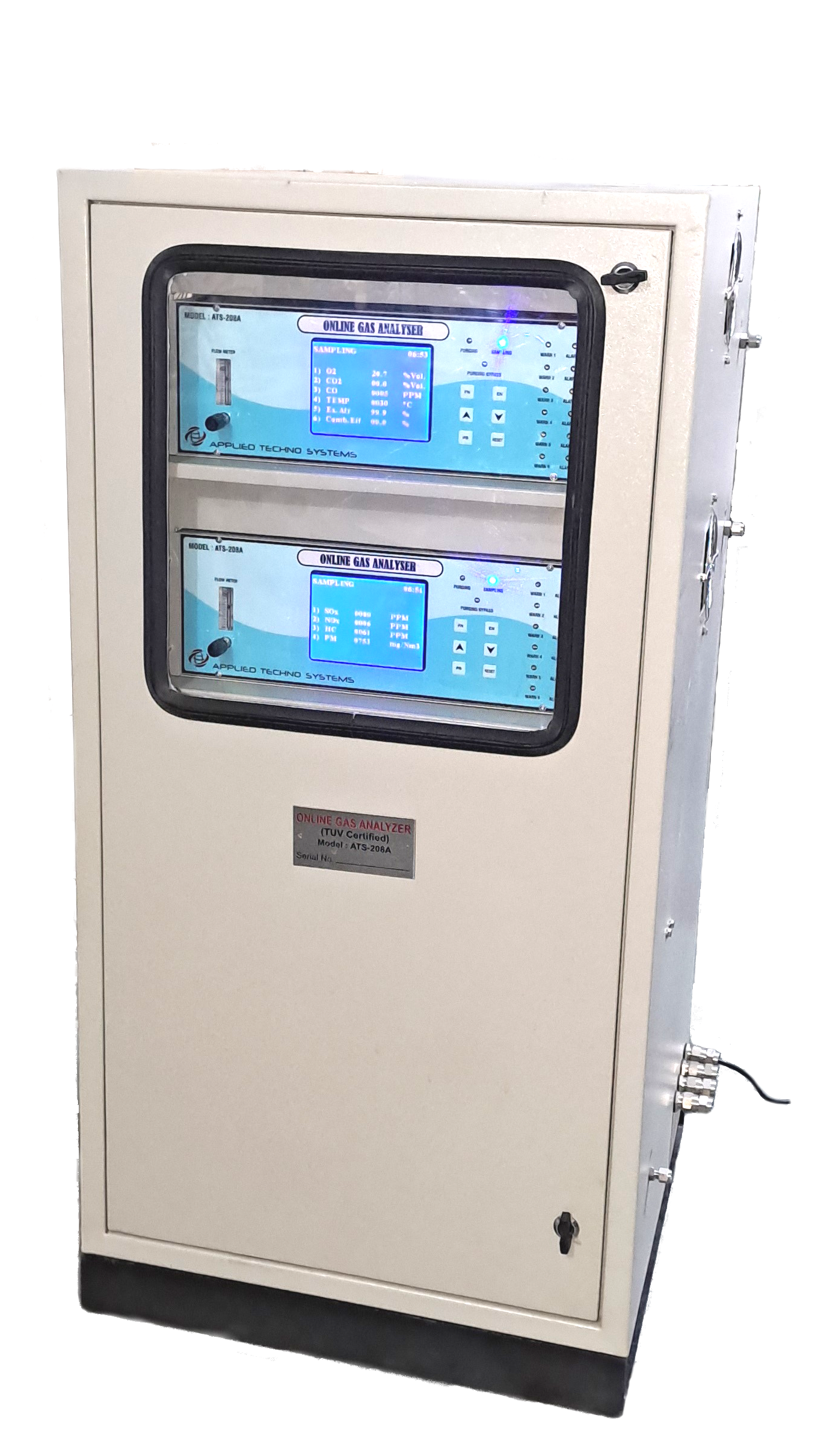

Model ATS -208A Gas with dual displayAnalyzer continuously monitors the concentration of gasesranging from 100%V/V down to PPM level. Feature includes a duel wavelengthsensor, Remote Sampling, Graphics LCD Display, adjustable level relay output foralarm and 4-20mAoutput for control purpose and minimal maintenance.Special gas sample Conditioning systems are used to clean and dry the gas samplefor accurate and High performance operation. An Internal Pump draw gas sampleinto the sensor through a dust particle filter from an intake which can be located atdistance up to 40 meter form the monitor.The Sensor and Electronic component are housed in tough aluminium housingFor hazardous area applicationsthe sensor may be mounted remotely in thehazardous areaand safely connected via anzener barrier to the electronics unit inthe safe area. Alternatively the electronicsunit can be supplied in an Explosion proofenclosure. spacification · Accuracy : +/- 2%. · Display : High quality 320 x 264 Graphics LCD · Sampling : Auto Suction Sampling through Inbuilt Pump · Digital Output : RS-485 · Zero Calibration: Automatic at instrument start up with fresh air sample. · Power Supply : Power Supply 230V AC · Measuring Principle : Dynamic Detection Principle DDP · Analogue Output : 4-20mA · Path Length : 0.25 to 10 meter
